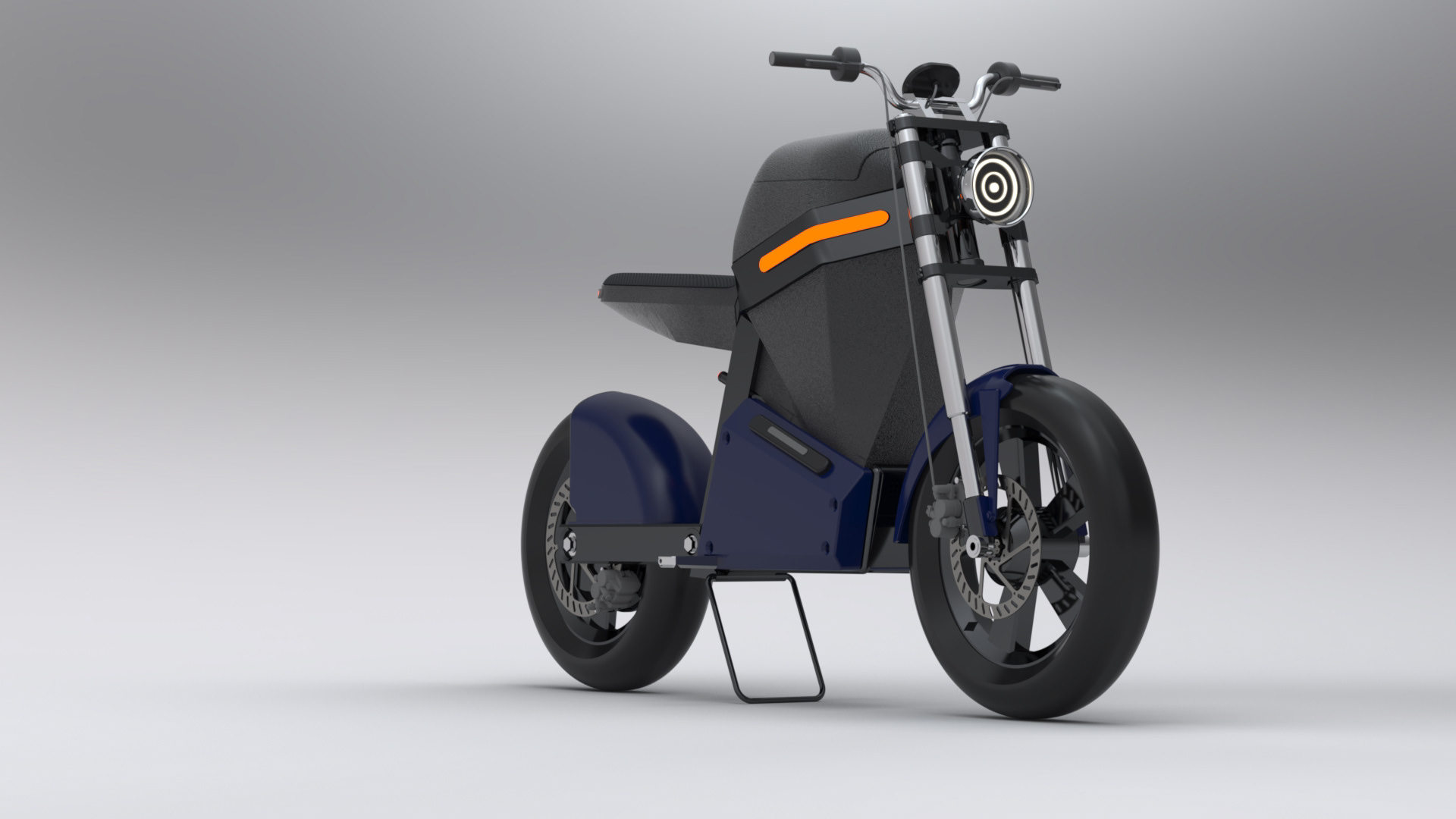

The Urban Traveller is a moped with a motorbike look, creating a new feel and look to your typical commuting vehicle.
The Urban Traveller is designed to add more storage to your daily commuter making it easier to take the world with you. Sporting a large 90L Cargo, Duel 48v 28A batteries paired with a rear 48v 2800w hub motor giving you a range of 80-100km.

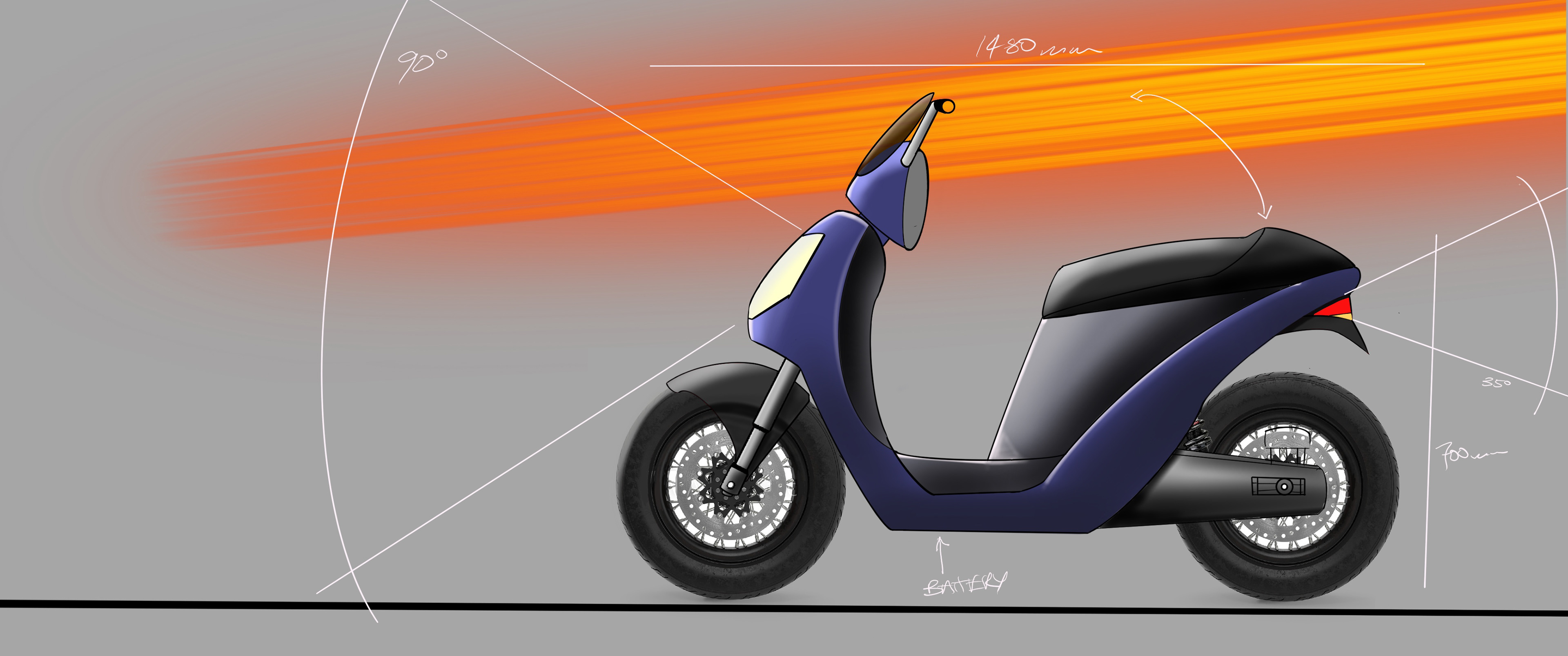

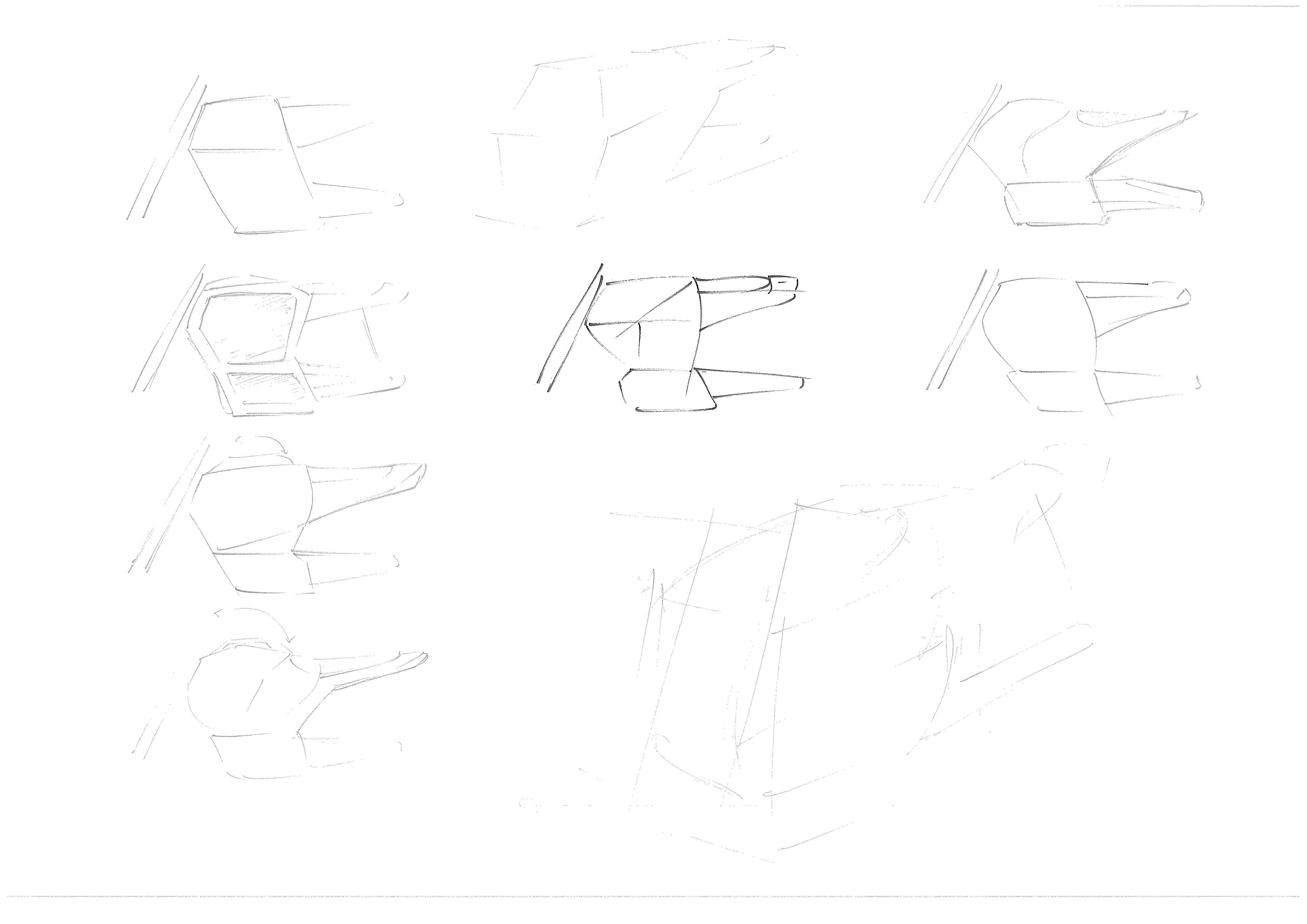

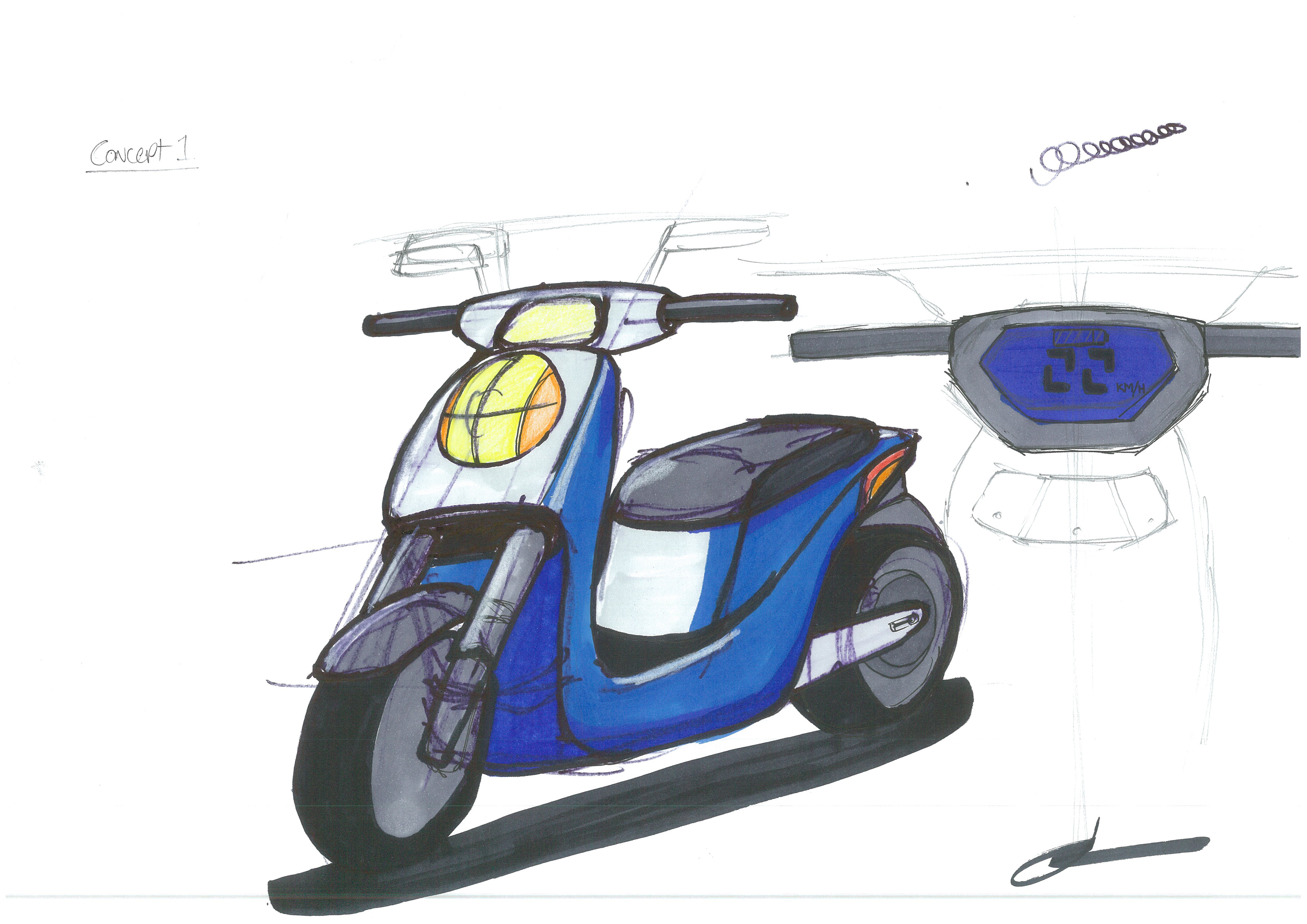

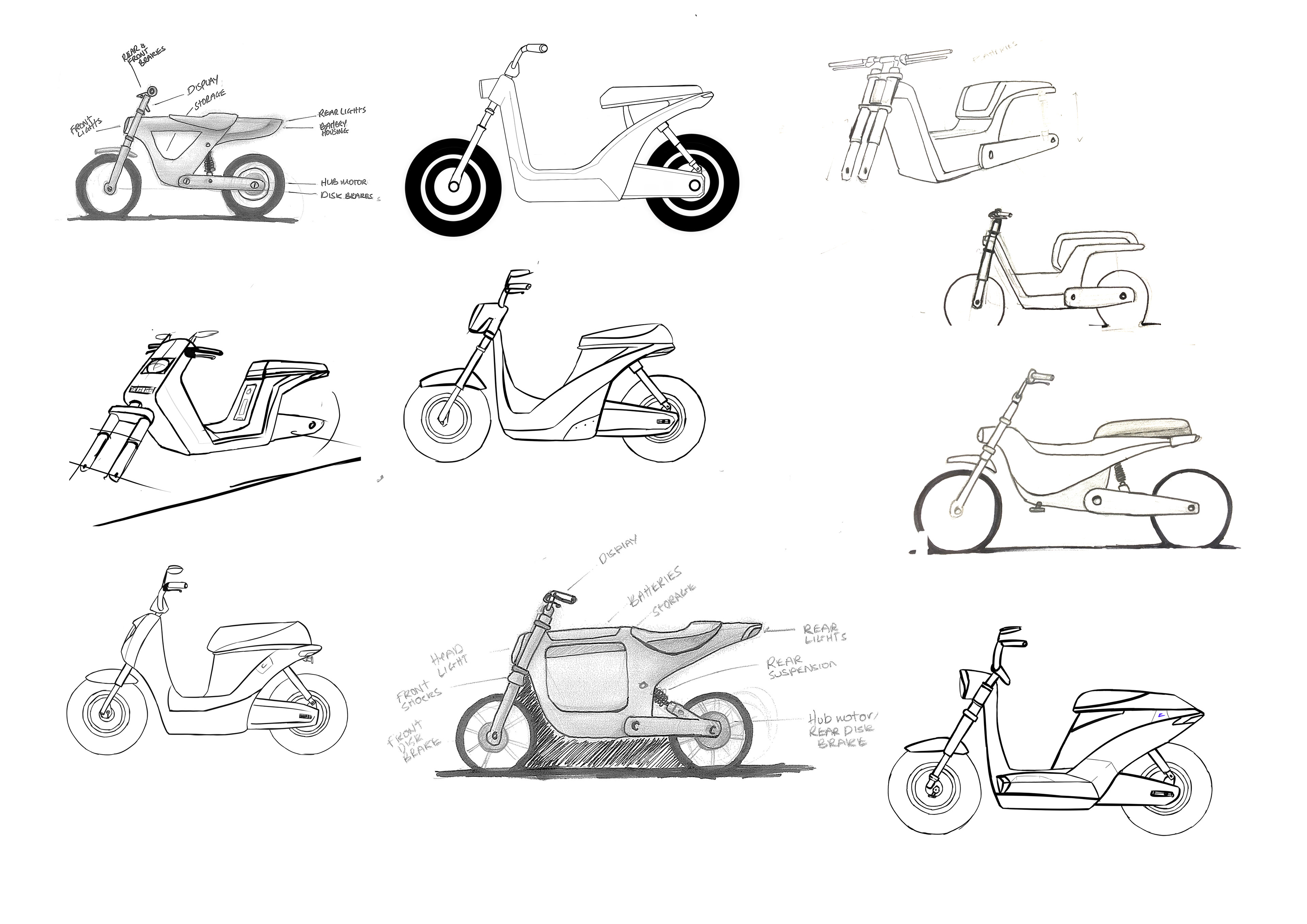

Initial concepts

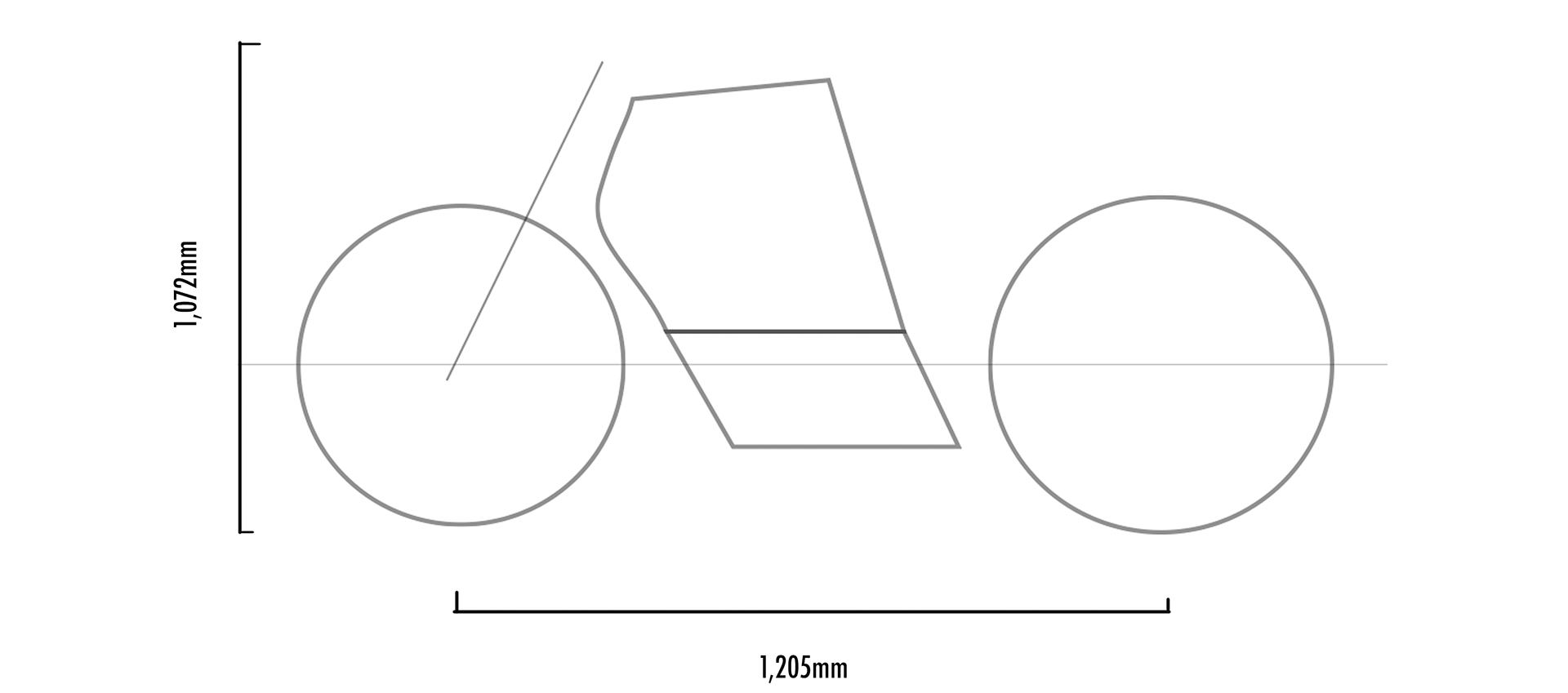

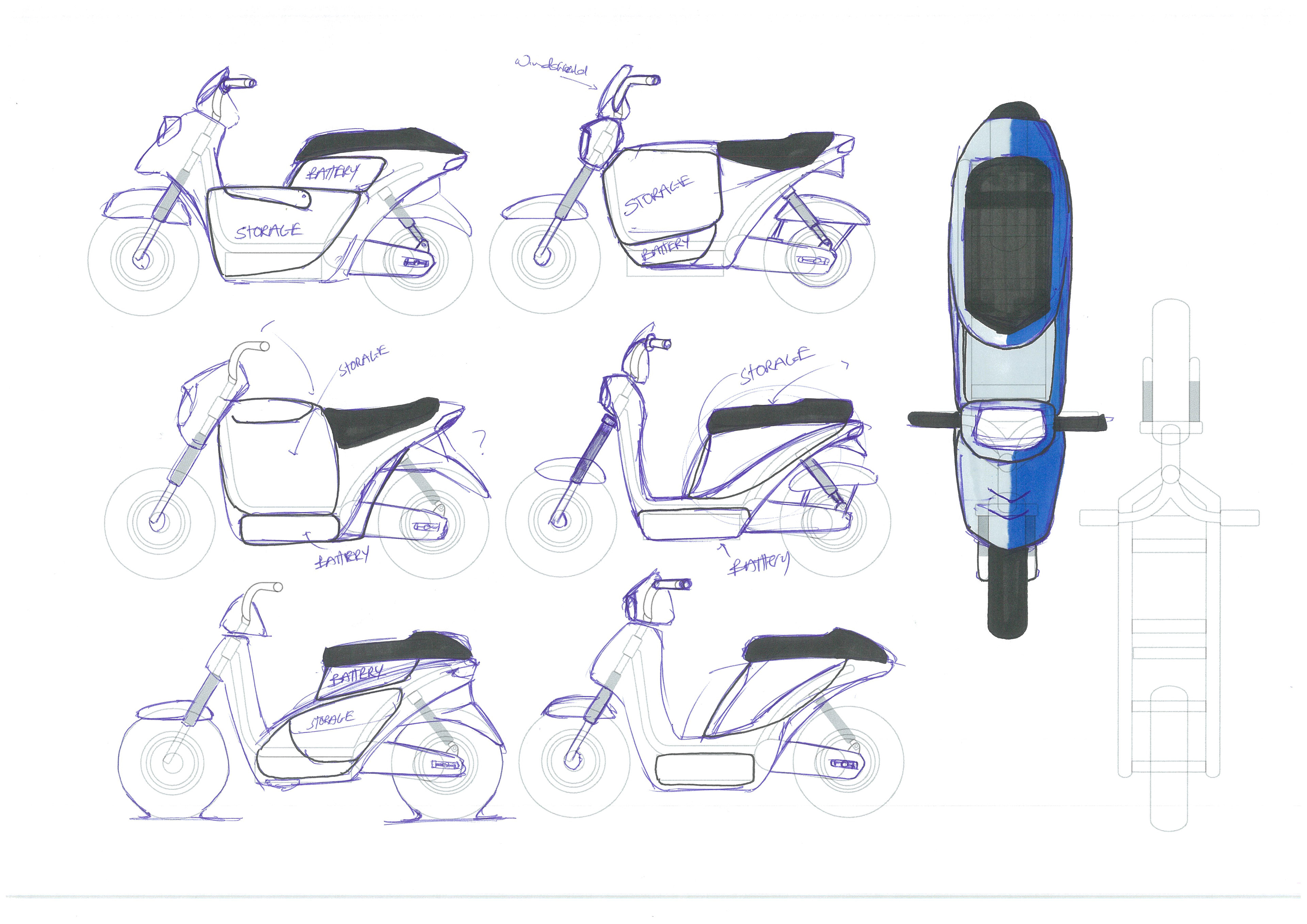

After the initial concept faze i moved onto a using a template driven from the initial concept and research in the first semester.

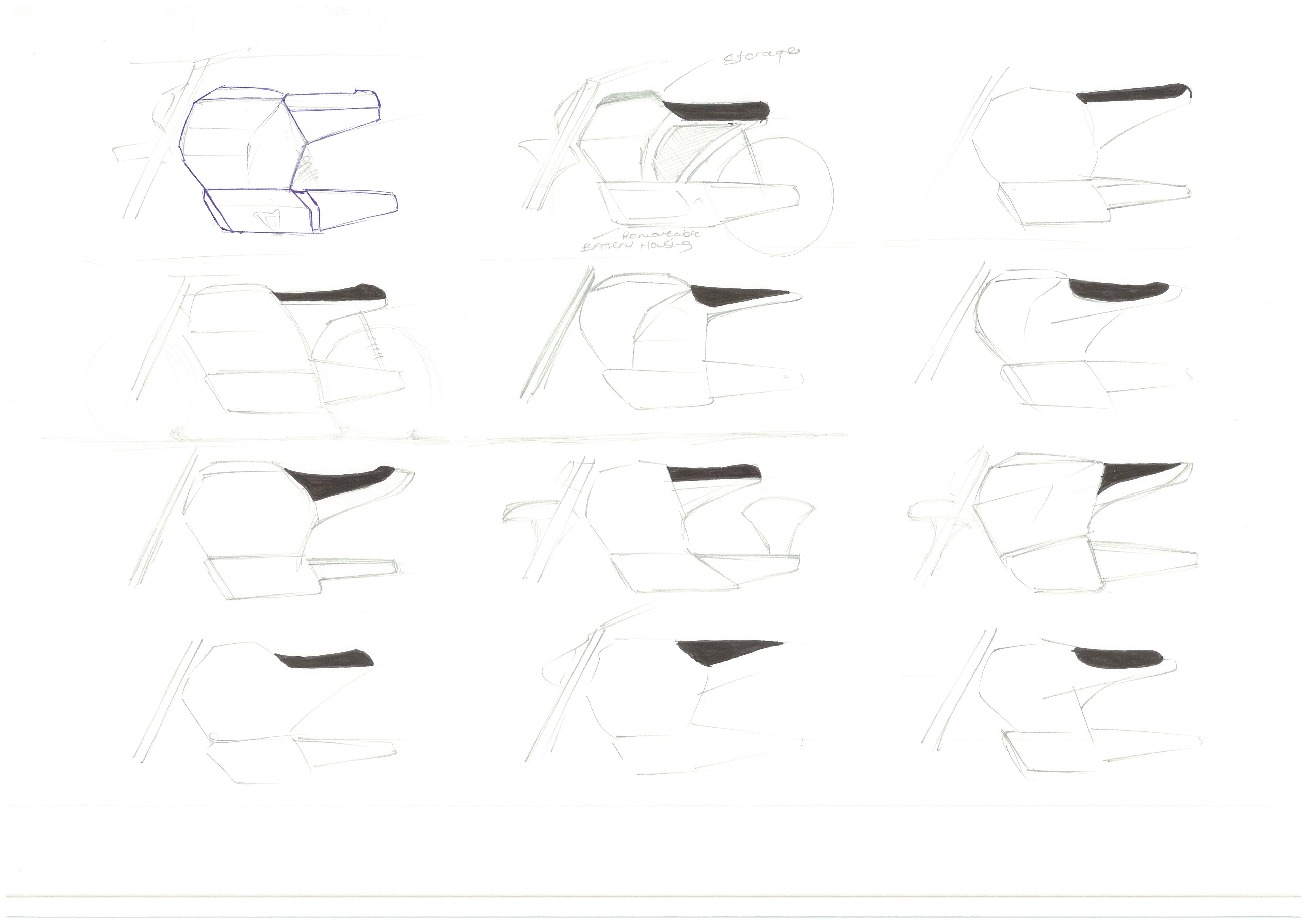

These templates allowed me to generate more concepts faster with more of a defined scale to allow for user ergonomics.

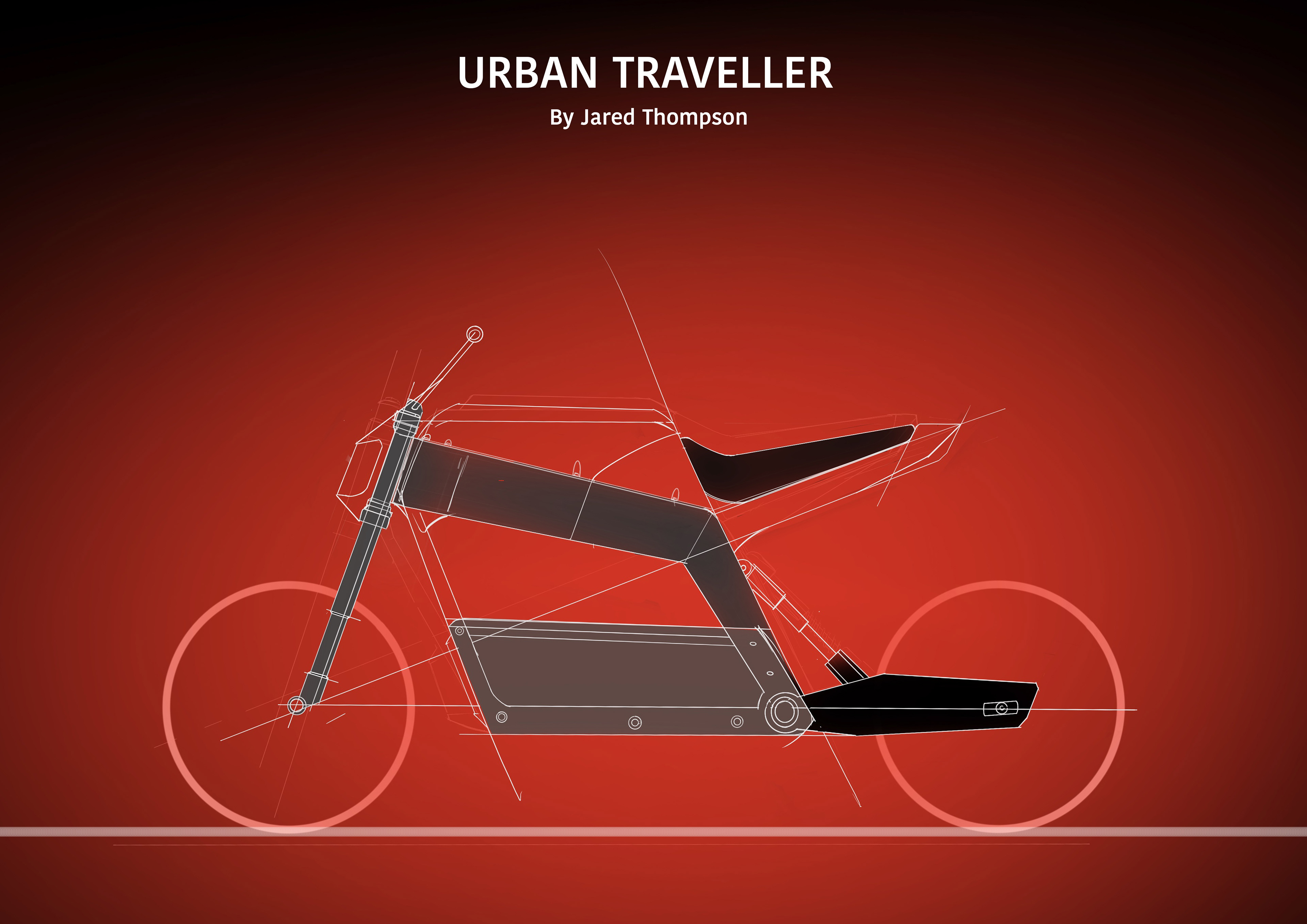

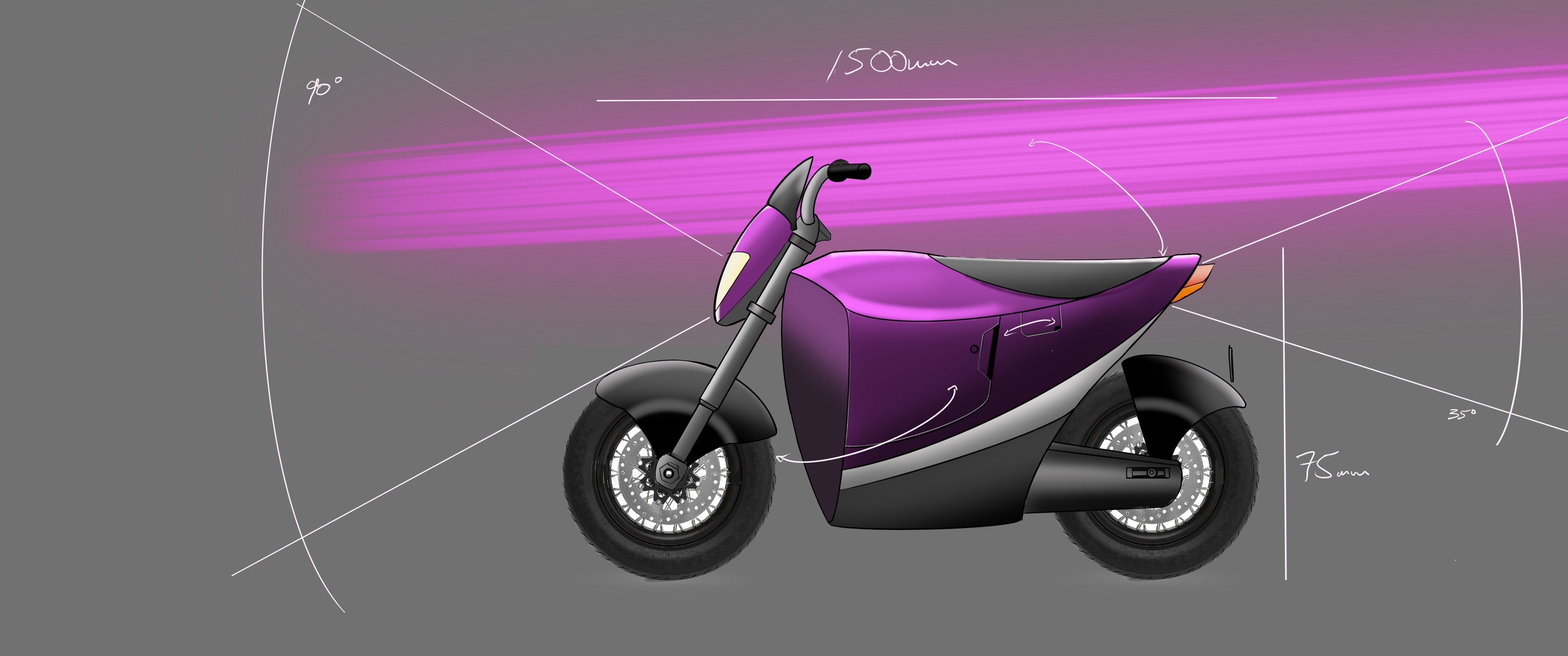

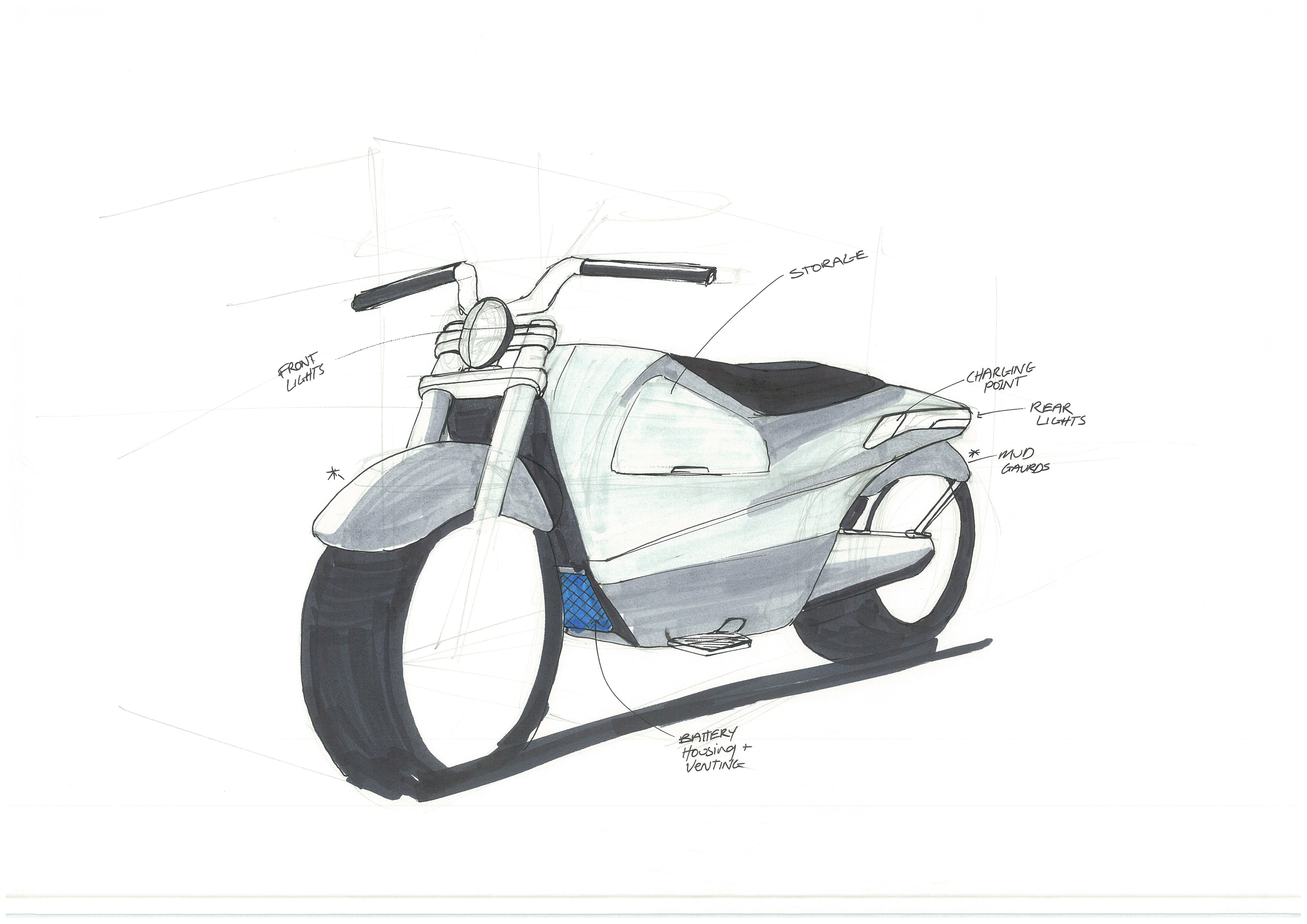

I then took the concepts back o my focused user group from the first semester where they chose their Favourite two concepts, I then scaled and drew them in illustrator .

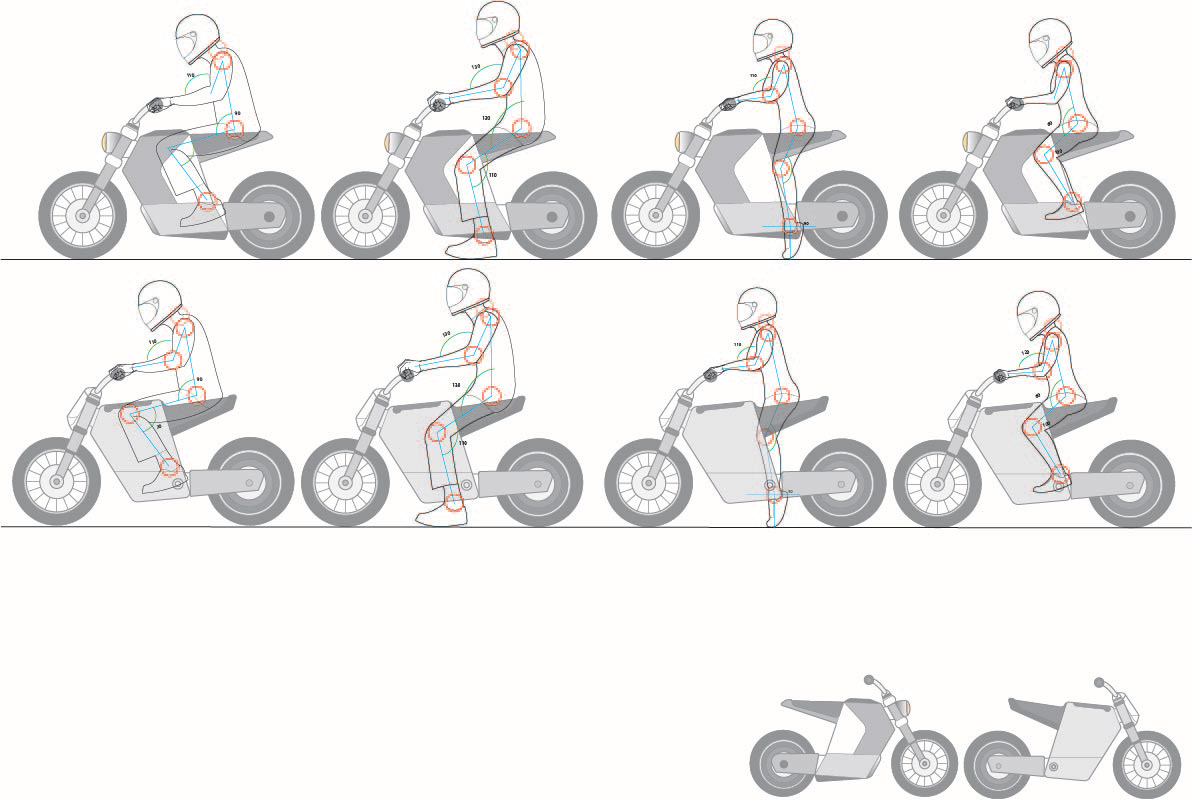

95th percentile Male (Left) -5th percentile Female (Right)

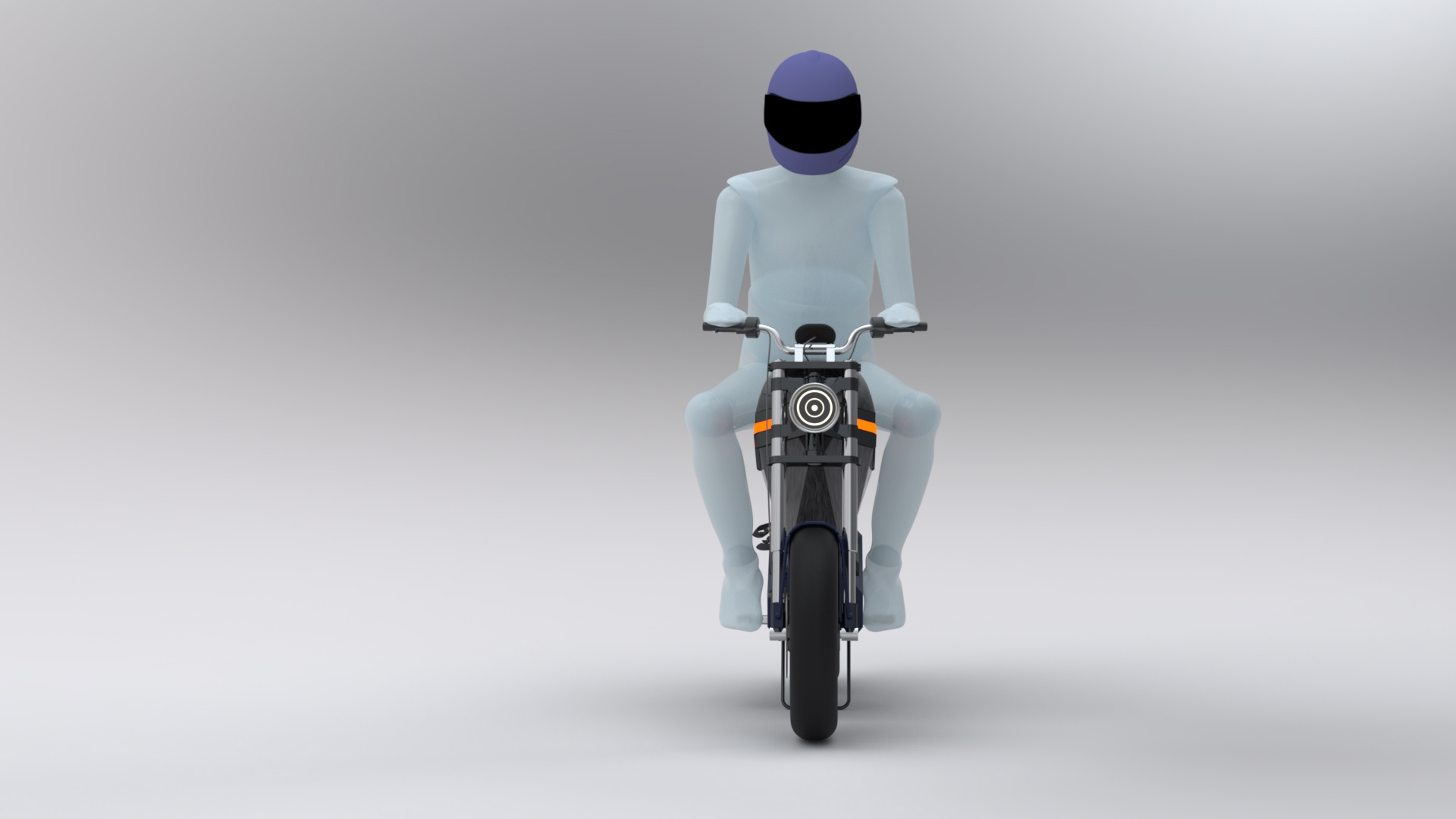

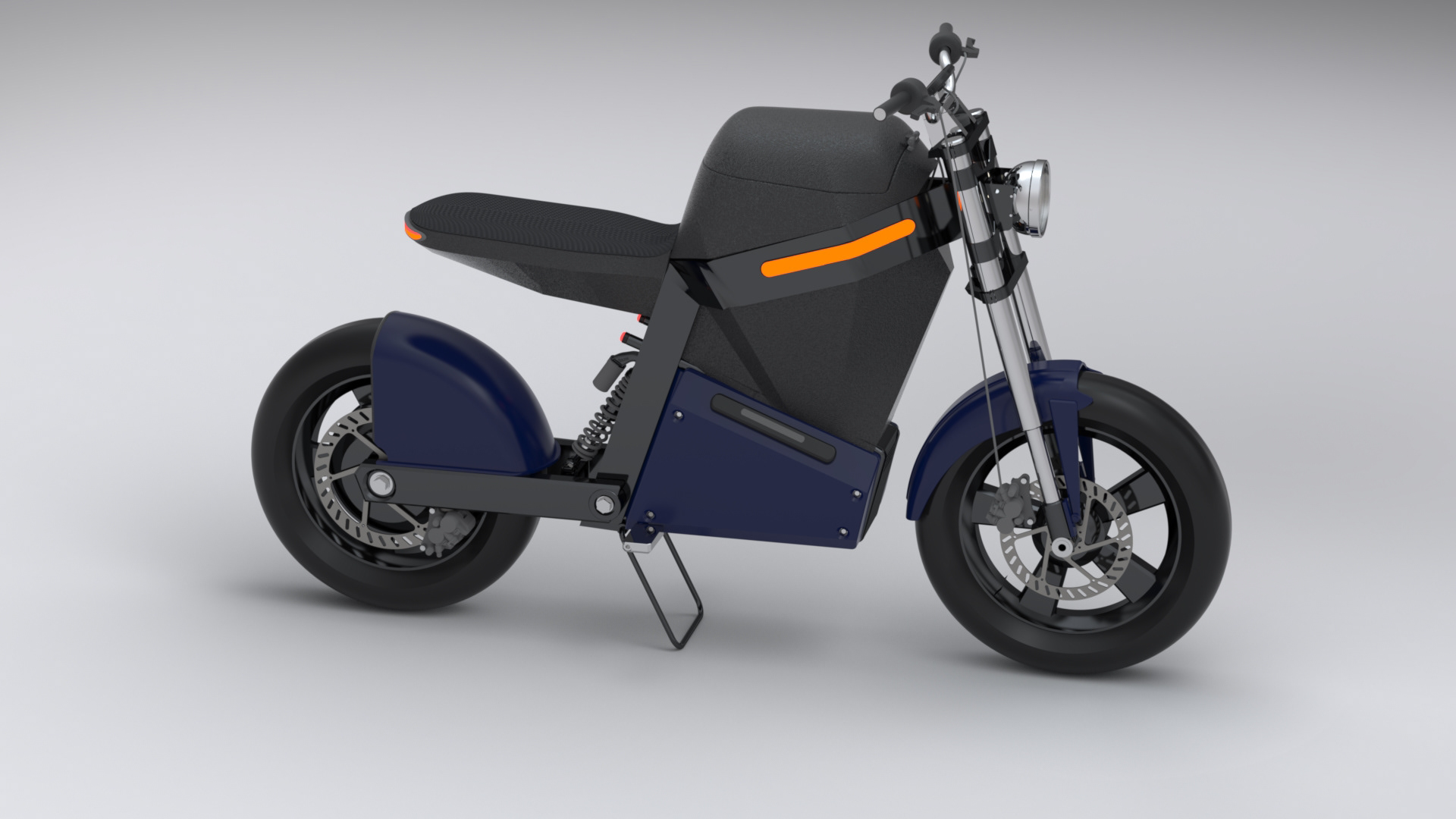

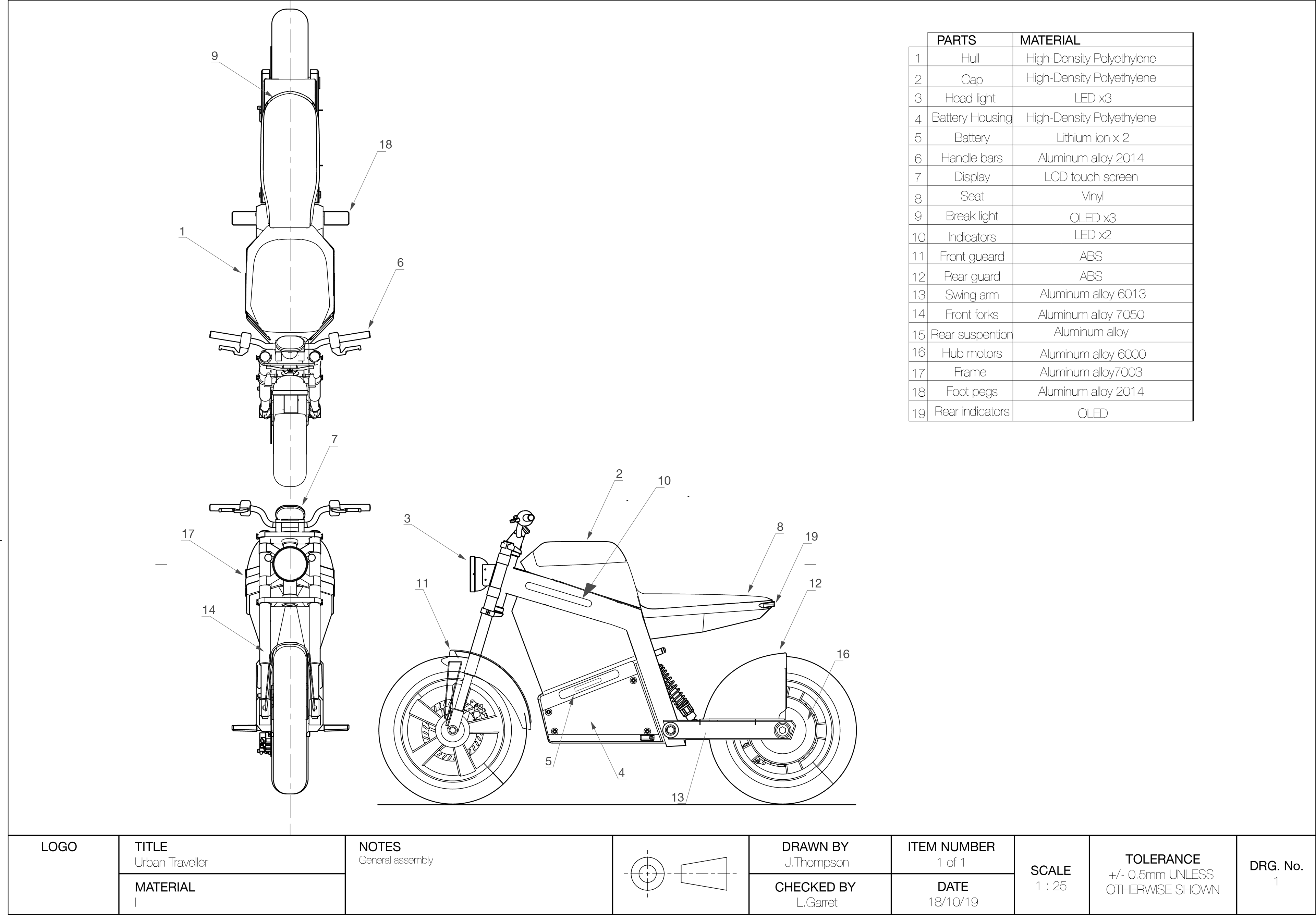

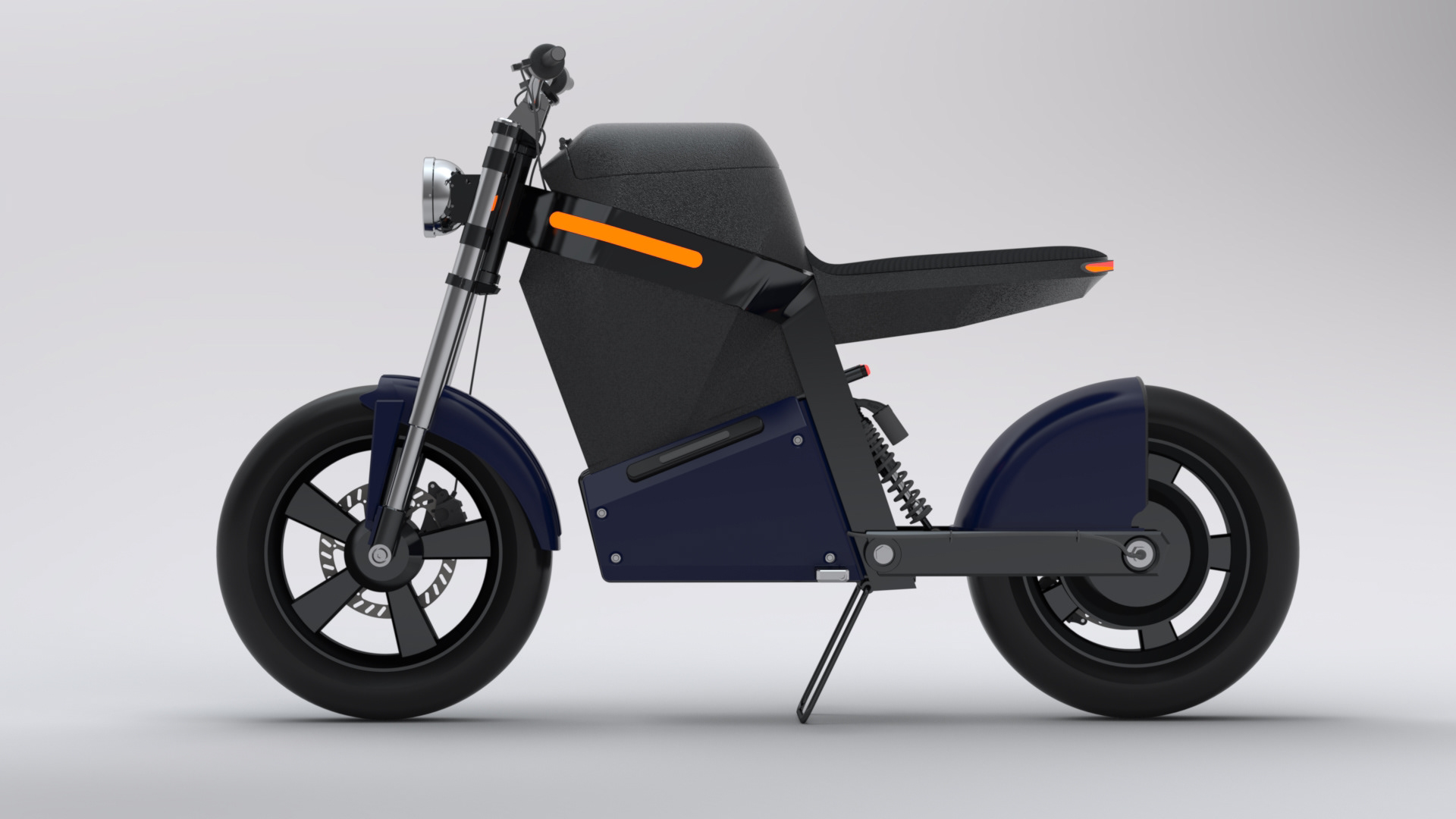

Final 3D model.

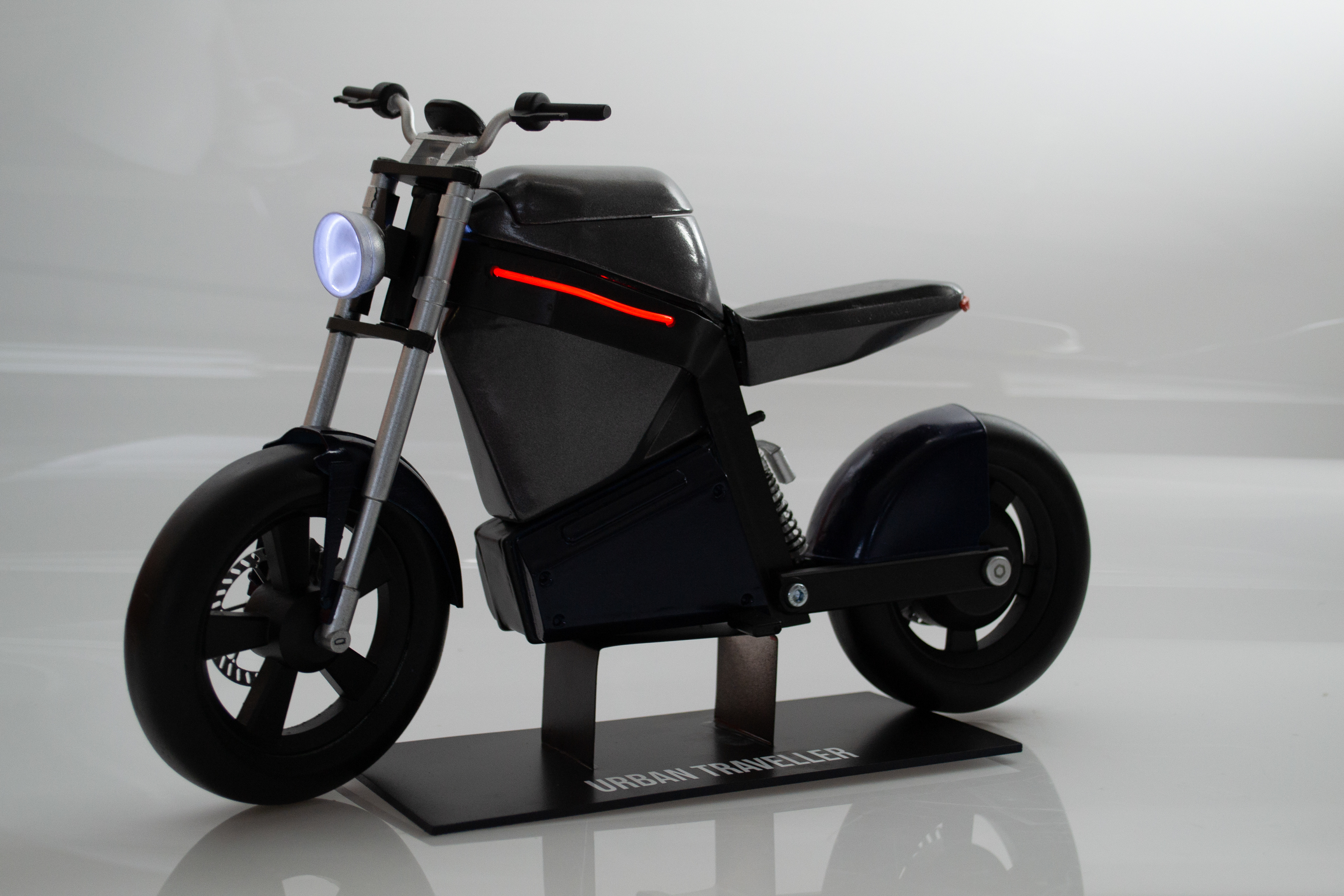

Materials
PLA 3D print, SLA resin print, EL Wires, CNC milled MDF and Laser cut Graphite laminate. combined with spray putty and automotive paint.
95th percentile Male - 5th percentile Female.

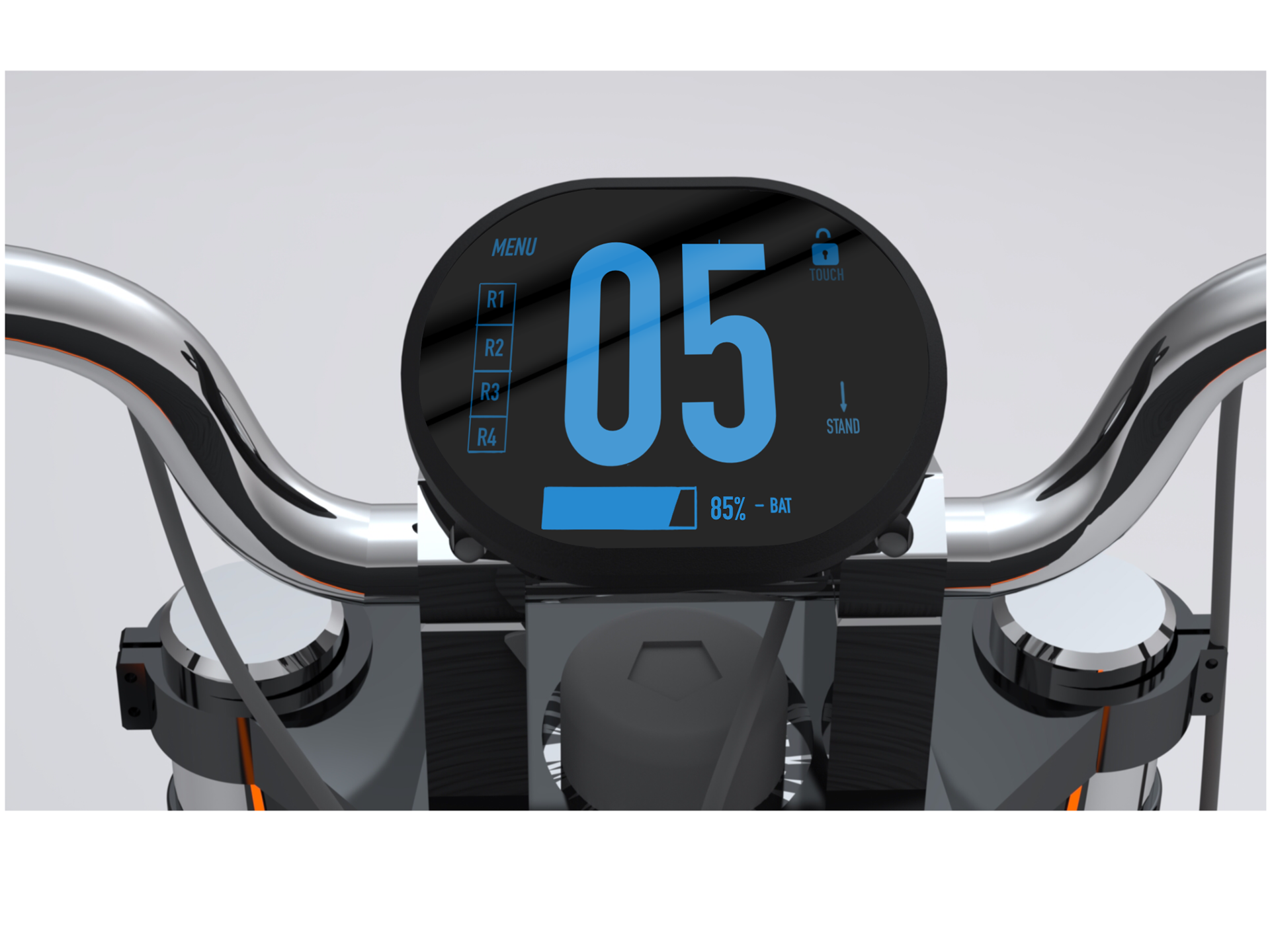

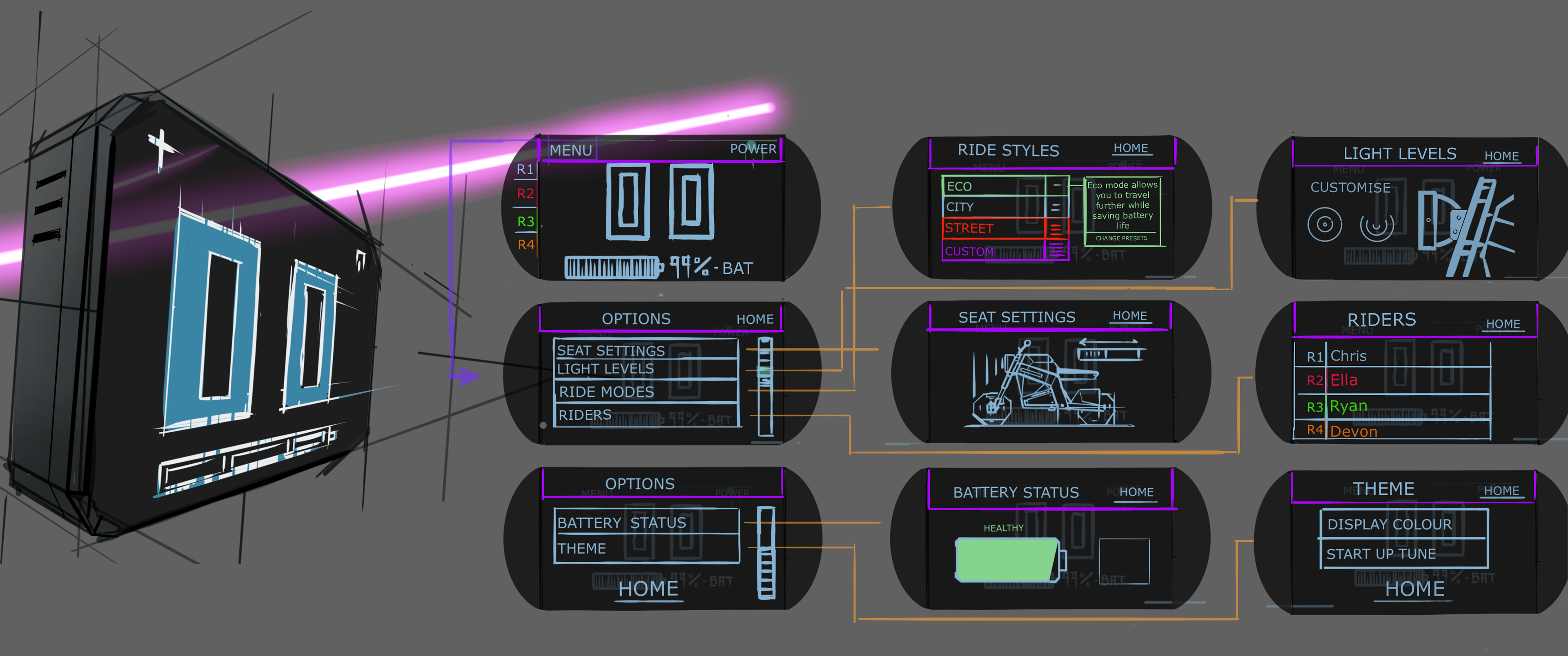

Final Design, User interaction video showing some features and
